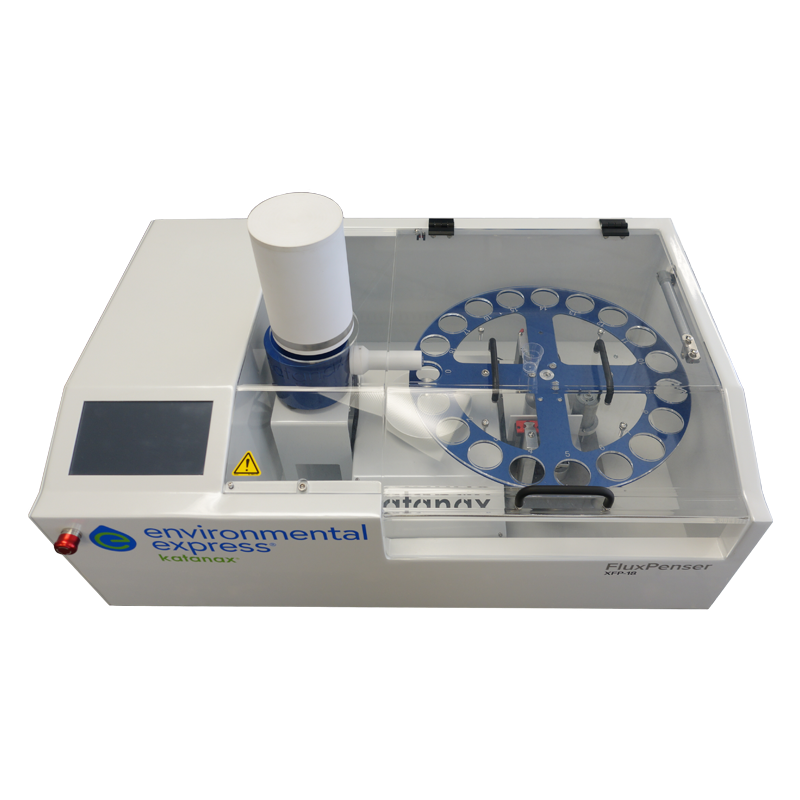

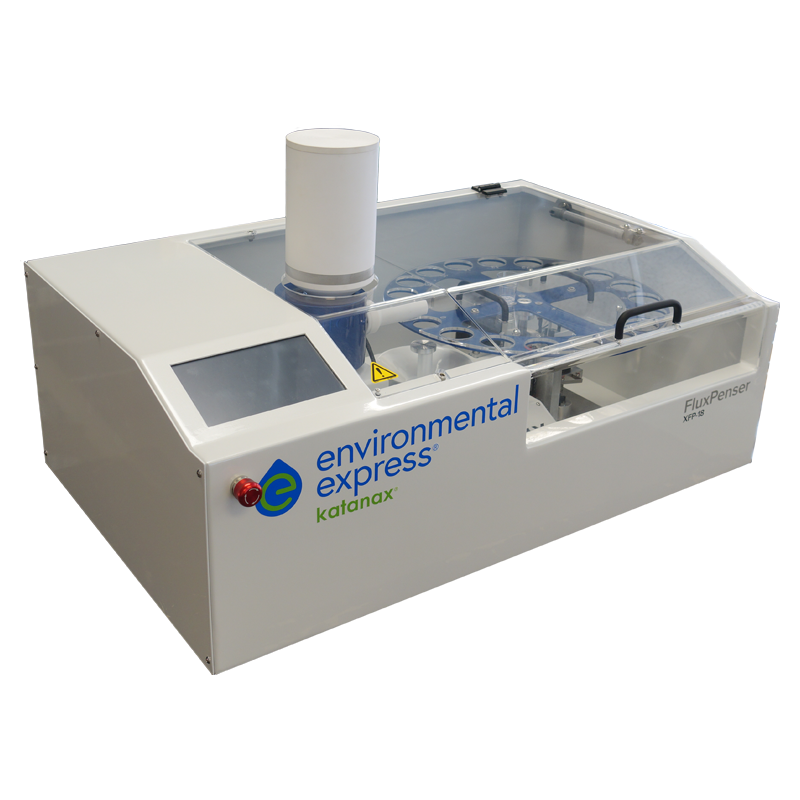

The XFP-18 FluxPenser®
The Katanax® XFP-18 FluxPenser® is a is a multi-position flux dispenser designed to pre-weigh 18 Katanax crucibles or 25 vials. The automated unit leaves the end-user free to perform other activities while the flux is dosed accurately up to 1mg.
To place an order, contact a sales representative at +1.418.915.4848 or via email to info@katanax.com
- Adds flux to the desired weight within 1 mg accuracy
- Automates weighing task, avoiding repetitive strain
- Dispense granular or micro bead flux for optimal flexibility
Automatically calculate and accurately dispense the required amount of flux to the sample with a flux dosing dispenser. Two operating modes make it easy to accommodate your dispensing needs. Select absolute mode for high-accuracy flux dosing and weighing; relative mode lets you obtain a desired flux/sample ratio by weighing your sample then adding flux to the desired ratio. Silo is provided to facilitate flux reloading, while minimizing contamination and moisture exposure. Weight data can be transferred to most LIMS systems over standard communication protocols.
Accuracy:
- Accurately adds flux at the desired weight, adjustable between 1 mg and 100 mg
Efficiency
- Automates weighing task, avoiding repetitive strain.
- Low energy consumption with high throughput.
- Dispenses flux in approximately one minute.
Versatility
- Weight or ratio modes
- Fully customizable Weight
Connectivity
- Communicates with most x-ray software, only requiring the user to select the pre-registered model and suitable interface with analytical scale.
- LIMS compatible.
Simplicity and Robustness
- Simple set up and low maintenance.
- Robust construction with no soft tubing.
Safety
- Safety lock on doors does not allow access to moving parts during operation.
- Robust construction with no soft tubing.
| Voltage | 115-230 VAC, 50/60 Hz |
|---|---|
| Max Power | 400 W |
| Width | 82 cm (32 in.) |
| Depth | 54 cm (21 in.) |
| Unit Length | 50 cm (20 in.) |
| Weight | 47 kg (104 lb) |
