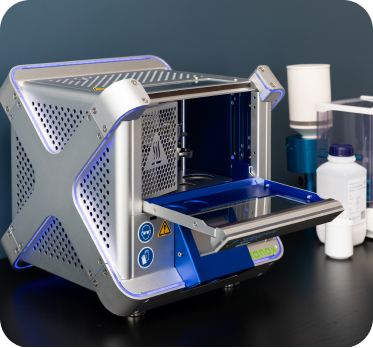

The X-100 Electric Fusion Fluxer for XRF and ICP Analysis

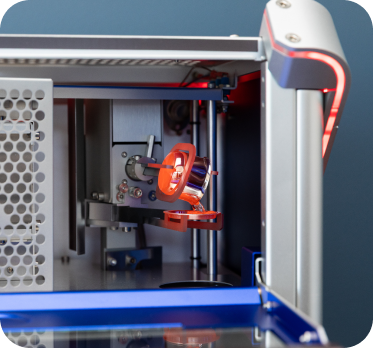

Optimize results with automated repeatable samplep preparation. The Katanax X-100 is a compact, single-position electric fusion fluxer designed for preparing high-quality glass beads for XRF and accurate solutions for ICP. It automates each step of the fusion workflow—from heating to pouring—so technicians can accelerate sample prep with consistency.
Request A Quote Or Demo

To place an order, contact a sales representative at +1.418.915.4848 or via email to info@katanax.com

Embrace fusion technology with ease. Effortlessly introduce entry level fusion for sample processing workflows.

The X-100 produces reliable glass disks (fusion beads) for X-ray fluorescence (XRF) analysis by preparing homogeneous, reproducible samples from a wide range of inorganic materials. The X-100 can be used to create dissolved metal solutions (including peroxide or pyrosulfate fusions with modification) for inductively coupled plasma (ICP-OES and ICP-MS) analysis.

The X-100’s gas-free design eliminates the need for combustible gases, reducing fire risk and simplifying laboratory infrastructure. Its electrically controlled heating ensures stable, reproducible fusion conditions with minimal thermal variability, enhancing analytical precision and operational reliability.

Sample types include soil, alloys, slag, minerals, ceramics, glass, and cement.

Versatile
  • Unparalleled consistent sample preparation for XRF (beads) or ICP analysis (solution)
Compact
  • Limited footprint minimizes disruptions to existing lab processes and simplifies site setup requirements
  • Smallest X series footprint available, perfect site restrictive pilot process development
Easily introduced
  • User-friendly interface–easily navigate operations with illuminated process indicators and an intuitive touch screen
  • Pre-loaded with fusion methods that are ready to use but can also be fully customized

Resilient

  • Heating elements can be individually changed and are impervious to both flux and chemical attacks. They maintain their structural integrity and do not become brittle over time.
Automated
  • Entirely automated, cold-to-cold preparation
  • The furnace heats to the required temperature in less than 15 minutes
Safe
  • Independent self-contained operation with fully automated heating and sample processing
Connectivity and convenience
  • Featuring CPLive™ networking functions
  • Compact footprint enables effortless integration into virtually any laboratory workspace
Innovative heating elements and advanced furnace

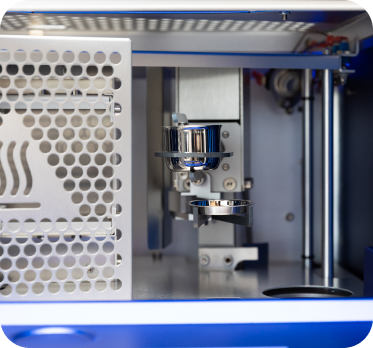

  • Strict use of ceramic eliminates metal contamination
  • Impervious to flux and other chemical projections
  • Cartridge type for easy replacement
Utility friendly
  • Industrial PLC interface (does not depend on Windows updates)
  • Works on 115 or 230 VAC single-phase power (3-phase not required)
  • No external power supplies, cooling fluids or gas lines
Voltage115–230 VAC, single-phase
Frequency50/60 Hz
Fuses10 A (fast blow)
Maximum Power1250 Watts
Temperature Range50 to 1200 ºC
Height42 cm (16.5 in.)
Width42 cm (16.5 in.)
Depth42 cm (16.5 in.)
Weight22 kg (49 lb.)
What’s IncludedX-100 main unit
Tool kit (hex keys, spare fuses, etc.)
Instruction manual
USB memory stick for firmware updates and program backups

X-100 Brochure

The Katanax® X-100 fluxer showcases state-of-the-art technology, establishing itself as a premier high-end solution.
