The XFP-1 FluxPenser®

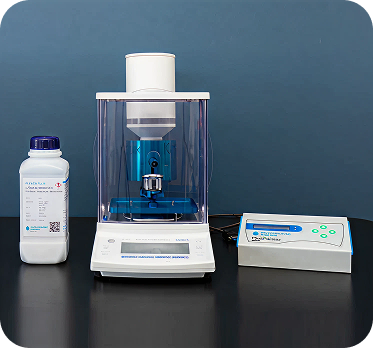

The Katanax® XFP-01 FluxPenser® is a flux dosing machine that automatically calculates and accurately dispenses the required amount of flux to the sample. With the XFP-01 FluxPenser, your lab will gain efficiency, precision and excellent reproducibility in sample and flux weighing.
To place an order, contact a sales representative at +1.418.915.4848 or via email to info@katanax.com
The FluxPenser can dispense granular or micro bead flux for optimal flexibility. Dispensing parameters can be adjusted to desired speed and dispensing precision for flux type.
The XFP-01 FluxPenser® has two operating modes:
- Mode 1: High accuracy flux dosing and weighing (absolute mode).
- Mode 2: Automatic flux dispensing to obtain a desired flux/sample ratio (relative mode). The sample is weighed, then flux is added to the desired ratio. Sample is in a sandwich of flux to facilitate mixing and protect platinumware.
Zero-touch operation for absolute mode flux dispensing and one-touch operation for ratio mode.
Accuracy:
- Accurately adds flux at the desired weight, adjustable between 1 mg and 100 mg
Efficiency
- Automates weighing task, avoiding repetitive strain.
- Low energy consumption with high throughput.
- Dispenses flux in approximately one minute.
Versatility
- Silo is provided to facilitate flux reloading, while minimizing contamination and moisture exposure.
Connectivity
- Communicates with most x-ray software, only requiring the user to select the pre-registered model and suitable interface with analytical scale.
- LIMS compatible.
Simplicity and Robustness
- Simple set up and low maintenance.
- Robust construction with no soft tubing.
| Voltage | 110-220 VAC, single phase, 50/60 Hz) |
|---|---|
| Max Power | 6 W |
| Weighing Unit Width | 20 cm [7.9 in.] |
| Weighing Unit Depth | 45 cm [17.7 in.] |
| Controller Width | 20 cm [7.9 in.] |
| Controller Depth | 20 cm [7.9 in.] |
| Assembled System Width | 50 cm [20 in.] |
| Assembled System Depth | 50 cm [20 in.] |
