Katanax - Technical specifications of the X-100 laboratory equipment

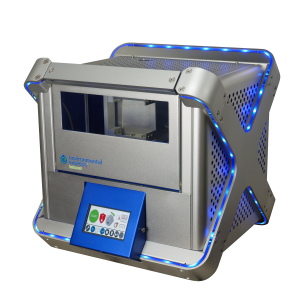

The X-100 fluxer:
Technical specifications (in development)
| Voltage: | 115 or 230 VAC |
| (50-60 Hz) |
| Power (max): | 1800 W |
| Temperature:
| 50-1200°C |
| Height:
| 42 cm [16.5"] |
| Width:
| 42 cm [16.5"] |
| Depth:
| 42 cm [16.5"] |
| Mass:
| 22 kg [48.5 lbs] |
Installation
Installation is fairly simple, just like another lab furnace:
- Run a 115 or 230 VAC wire from the 15A breaker box to the installation site. (You might well have such an outlet already installed.)
- Connect instrument to this standard wall outlet and turn on.
- Enjoy !
What is in the X-100 box
- 1 fluxer (X-100 main unit)
- 1 tool kit (hex keys, spare fuses...)
- 1 instruction manual
- 1 USB memory stick (for firmware upgrades and program backups)
|
|
